P3-2.1 Why Must Stored Records Be Reorganized for the Analysis Purpose¶

Section ID: P3-2.1 Version: v2026.09.19

In databases, data modeling represents the objects and relationships to be stored. This Part focuses on deciding which questions stored records should answer and organizing samples and columns accordingly. When storage and analysis serve different purposes, the same records need different groupings.

A dataset is a collection of data. Raw logs, image collections, and unlabeled records can all be datasets. Having a dataset does not, by itself, mean it is ready for a particular analysis or learning task. In this section, a dataset candidate means material whose sample units and columns are still being checked against the current question.

A row in a storage table may or may not be the sample to analyze. For predicting the next measurement, time-point rows can be a starting point. For comparing whole actions, multiple rows must be grouped into one action.

Suppose there is source data for automatically executed actions. Control parameters and sensor values accumulated over time can be stored directly in a storage table. Each row can hold a time point, a sensor name, a measured value, and a control-setting value. This structure is suitable for preserving records and tracing detailed flow when a problem appears.

Yet this table alone does not readily answer questions such as Was this action longer than usual?, Was its late decline unusually slow?, or Did the latest 20 actions differ from the baseline? A row in the storage structure usually represents one time point, while these questions require one action or a recent period containing several actions as the unit of comparison. Stored records therefore do not automatically provide the table needed for action-level comparison.

To see this difference clearly, place storage structure and problem-representation structure side by side.

Applied to a real table, this distinction can first be checked with the following three questions.

These three questions quickly distinguish whether the current dataset can answer the current question directly or needs restructuring. The first asks what a row means, the second asks about comparability, and the third asks when the raw logs must be reopened. Data modeling represents stored records in a form that lets us answer all three.

In storage structure, what matters is preserving everything without omission. In problem-representation structure, by contrast, we have to decide what should remain and what should be discarded. For example, once we decide to treat one full action as one sample, we can preserve the raw records and separately create columns such as the observed time span, mean flow, and slope of the last observed interval. This does not damage the storage structure. It designs a new representation to answer a different question.

The small table below immediately shows how the same source data is read differently depending on the purpose.

From Preserving Records to Restructuring for a Question¶

The possible need to reorganize stored records for a question becomes clearer when we separate preserving records from regrouping them for the question, as below.

flowchart TD
    A[Stored time-point records] --> B{Do rows match the sample unit for the question?}
    B -->|Yes| C[Keep the current row unit]
    B -->|No| D[Regroup for the question]
    C --> E[Check required columns and comparison conditions]
    D --> E
    E --> F[Check the dataset candidate for the current purpose]

Tracing a summary row back to the original records¶

The following fictional records A, B, and C are separate from A-101 in the previous chapter. event_id identifies the action, second is elapsed time since its start, and flow is flow in L/min. First, look at A's three records.

Grouping A into one row gives 3 records, an observed time span of 2−0 = 2 seconds, and mean flow (0.8+1.4+1.2)/3 ≈ 1.13 L/min. The slope of the last observed interval is (1.2−1.4)/(2−1) = −0.2 L/min/s. The meaning of these calculations is the same as in P3-1.1.

Keeping the identifier allows a return from the summary to the raw records. If action IDs repeat across equipment, include the equipment ID as well. Here, assume A, B, and C uniquely identify distinct actions.

Changing the point-count condition changes the candidate set¶

Problem: A and B have 3 observations, while C has 2. Apply the same aggregation code, then change the point-count condition from 3 to 2 to see which actions pass.

Input: Time-point records grouped by event_id, and the minimum observation count min_points_per_event.

Expected output: The raw table, an action-summary table, and rows passing the point-count condition. Passing does not establish that an action is complete or that actions are comparable.

Concept to inspect: Separate having values that can be calculated, passing a count condition, and observing the entire action. Two points suffice to calculate the last observed interval's slope. The default 3 is a candidate-selection condition for this experiment, not the mathematical minimum for every metric.

There are no missing values or duplicate timestamps in this input, and all observed intervals are 1 second. The slope calculation below assumes this fixed interval. If you change the timestamps, also change the calculation to divide by the actual time difference. observed_span_seconds is the difference between the last and first stored timestamps; it is not necessarily the actual duration of an action with a confirmed end.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46

# Regroup stored time-point records into event-level dataset candidates.
import pandas as pd

pd.set_option("display.max_columns", None)
pd.set_option("display.width", 120)

min_points_per_event = 3  # Lower to 2 to check C; this is not a completion check.

storage_table = pd.DataFrame(
    [
        {"event_id": "A", "second": 0, "flow": 0.8},
        {"event_id": "A", "second": 1, "flow": 1.4},
        {"event_id": "A", "second": 2, "flow": 1.2},
        {"event_id": "B", "second": 0, "flow": 0.7},
        {"event_id": "B", "second": 1, "flow": 1.1},
        {"event_id": "B", "second": 2, "flow": 0.6},
        {"event_id": "C", "second": 0, "flow": 0.9},
        {"event_id": "C", "second": 1, "flow": 1.0},
    ]
)

storage_table = storage_table.sort_values(["event_id", "second"])

dataset_candidate = (
    storage_table.groupby("event_id")
    .agg(
        point_count=("second", "count"),
        observed_span_seconds=("second", lambda values: values.max() - values.min()),
        mean_flow=("flow", "mean"),
        last_interval_slope=("flow", lambda values: values.iloc[-1] - values.iloc[-2] if len(values) >= 2 else float("nan")),
    )
    .reset_index()
)
dataset_candidate["passes_point_count"] = (
    dataset_candidate["point_count"] >= min_points_per_event
)
count_filtered_candidate = dataset_candidate[dataset_candidate["passes_point_count"]]

print("1) stored time-step records")
print(storage_table)
print()
print(f"2) event-level dataset candidate when min_points_per_event = {min_points_per_event}")
print(dataset_candidate.round(2))
print()
print("3) rows passing the point-count condition")
print(count_filtered_candidate.round(2))

Expected output:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21

1) stored time-step records
  event_id  second  flow
0        A       0   0.8
1        A       1   1.4
2        A       2   1.2
3        B       0   0.7
4        B       1   1.1
5        B       2   0.6
6        C       0   0.9
7        C       1   1.0

2) event-level dataset candidate when min_points_per_event = 3
  event_id  point_count  observed_span_seconds  mean_flow  last_interval_slope  passes_point_count
0        A            3                      2       1.13                 -0.2                True
1        B            3                      2       0.80                 -0.5                True
2        C            2                      1       0.95                  0.1               False

3) rows passing the point-count condition
  event_id  point_count  observed_span_seconds  mean_flow  last_interval_slope  passes_point_count
0        A            3                      2       1.13                 -0.2                True
1        B            3                      2       0.80                 -0.5                True

In the first table, each row is a time-point record; in the second, it summarizes the records associated with one action identifier. True in passes_point_count means only that the count condition was met. At the default 3, only A and B pass. Lowering it to 2 also admits C, but C's slope of +0.1 describes 0–1 seconds, while A and B describe 1–2 seconds. Identically named columns refer to different intervals, so these values alone cannot compare the ends of the actions.

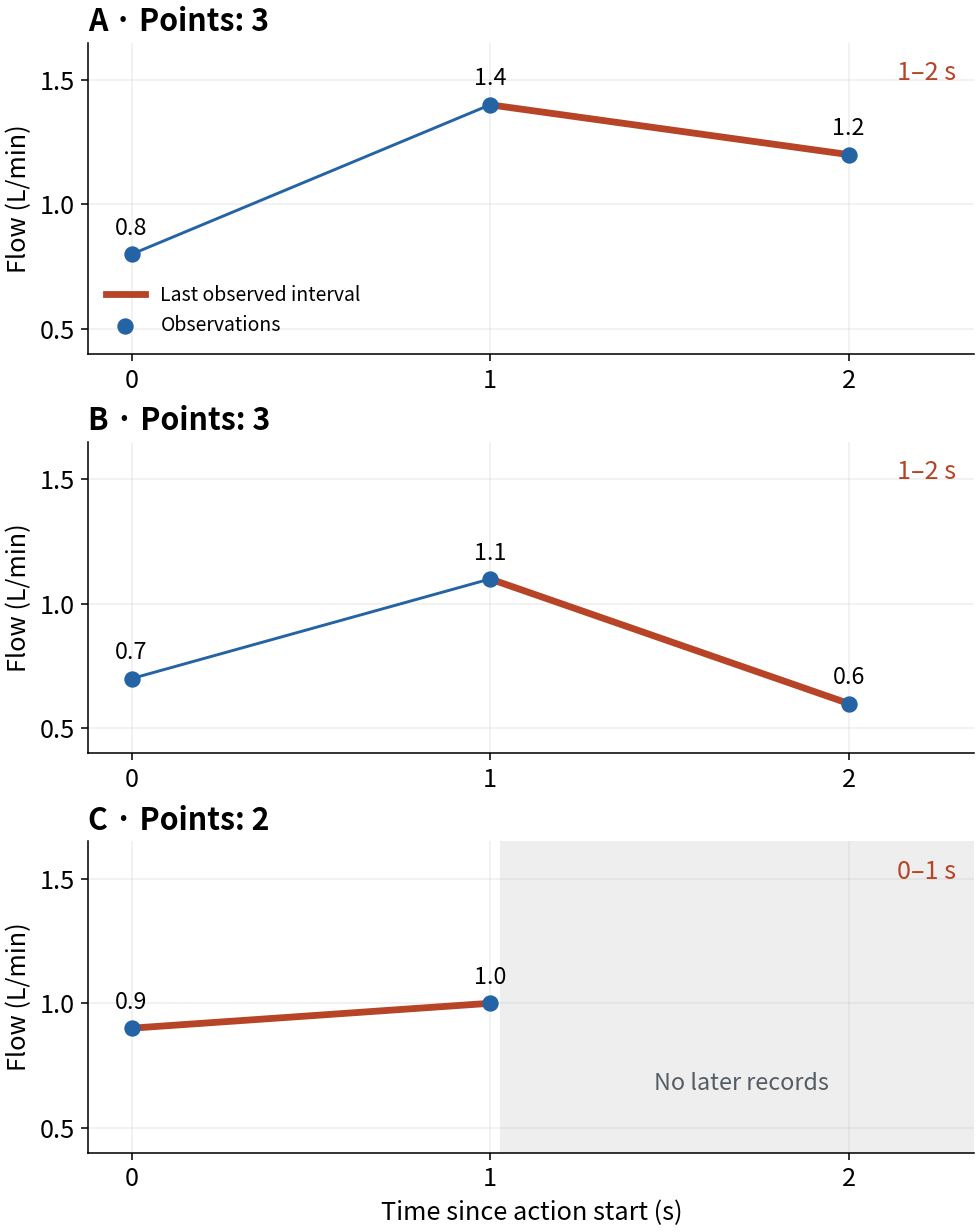

The following chart aligns the three actions on identical axes. Dots are observations; thick segments mark each action's last observed interval. Connecting lines indicate measurement order and do not establish the path between observations.

The gray region after C's 1-second observation means there are no later records. It does not mean flow is zero or that the action ended. No line is extended into that region.

In particular, C's observed_span_seconds=1 does not establish that the action ended after 1 second. It may actually have ended then, or continued without further records. Nor do A and B's three points prove that their ends were observed. This input has no confirmation of action completion.

Point count and measurement spacing are also separate. If only A's timestamps change to 0, 1, and 4 seconds, the count remains 3 and mean flow is unchanged. But the observed span becomes 4 seconds, and the last slope is (1.2−1.4)/(4−1) ≈ −0.067 L/min/s. Code that assumes 1-second spacing still returns −0.2, leading to an incorrect interpretation. Thus, counting enough points does not replace checking the time axis.

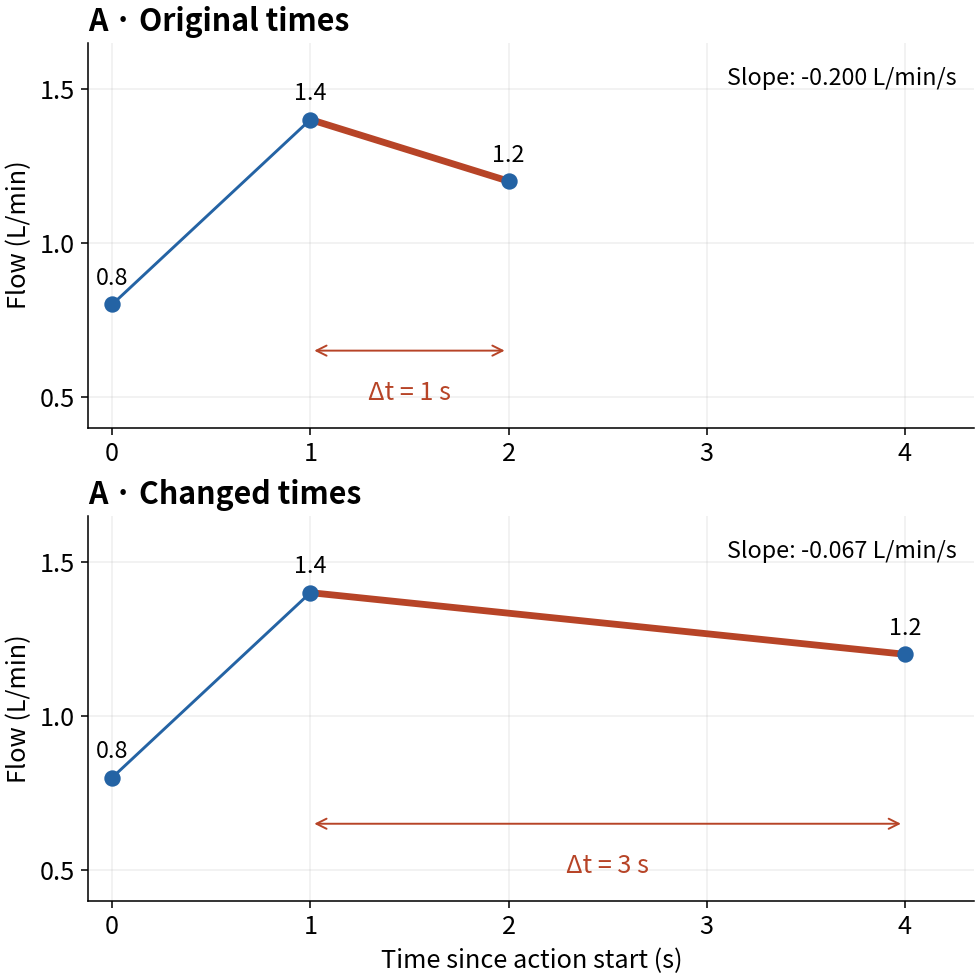

The two panels below use the same axis ranges and flow values. Only the time of the last observation changes from 2 to 4 seconds.

The flow difference is −0.2 L/min in both panels, but it spans 1 second above and 3 seconds below. The shallower slope is caused by the changed time denominator, not a different point count or flow difference. The connecting segments do not confirm constant change throughout either interval.

It is also useful to check briefly where we get stuck if we keep the same data in storage structure without changing it.

So storage structure shows what was recorded, but it does not automatically decide what should be compared as one case. Rebuilding a dataset candidate means filling in exactly that blank.

One warning is necessary here. Problem-representation structure does not replace storage structure. Creating a summary table does not make raw logs unnecessary. On the contrary, if the summary table shows a strange change, we need to return to storage structure and inspect the detailed time points again. Storage structure preserves evidence, while problem-representation structure makes comparison possible. They are not competing structures, but linked structures with different roles.

This relationship can be summarized more briefly as follows.

This table shows that the difference between storage structure and problem-representation structure is not merely a difference in table shape, but a difference in the questions that can be answered. How a table was stored and which questions it can answer are not the same problem. That is why the first task at the front of Part 3 is not to look at records and imagine model names, but to ask into what dataset candidate those records should be reread.

More broadly, this section separates preserving source records, resetting the analysis unit, and creating derived representations as work at different levels, and determines what regrouping and additional checks the current question requires.

The first thing to check is therefore not what the material is called, but whether the unit and derived representation needed to answer the current question have been defined.

Checklist¶

• Can you trace A's summary row back to its three original records and reproduce its mean and last-interval slope?
• Can you name one piece of information retained in the summary and one that requires reopening the raw table?
• Why does C passing after min_points_per_event is lowered to 2 not mean its slope describes the same interval as A and B?
• What action-end information and sampling intervals must you check before claiming that three points cover the entire action?
• Can you verify in the output that C's raw records and summary candidate remain even when C fails the count condition?

Sources and Further Reading¶

• Google for Developers, Machine Learning Glossary: example, labeled example, feature. Because it explains the example unit and the role of features separately, it supports the core point of this section that a stored row and a comparable sample row may differ. https://developers.google.com/machine-learning/glossary / Accessed: 2026-07-20
• Oracle, Introduction to Data Warehousing Concepts. Because it explains that a data warehouse is designed for business intelligence activities, query and analysis, maintaining historical records, and data analysis, it provides background on storage structures designed for analysis. This does not mean stored tables are always unsuitable for analysis. https://docs.oracle.com/en/database/oracle/oracle-database/26/dwhsg/introduction-data-warehouse-concepts.html / Accessed: 2026-07-20
• W3C, PROV-Overview. Because it treats provenance, derivation, and traceability together, it strengthens the higher-level frame that storage structure preserves raw evidence while problem-representation structure creates derived representations for different questions. https://www.w3.org/TR/prov-overview/ / Accessed: 2026-07-20

• Hadley Wickham, Tidy Data, Journal of Statistical Software 59(10), 2014. Because it organizes the relationship among variables, observations, and table structure, it provides the general principle behind the explanation that one row in storage structure and one row in an analysis table may not mean the same thing. https://www.jstatsoft.org/article/view/v059i10 / Accessed: 2026-07-20

• Google Machine Learning Glossary. Checked the distinction among datasets, labeled examples, and unlabeled examples. Checked: 2026-09-15.
