P6-19.1 A Small Generative AI Feature that Connects Question, Evidence, Answer, and Record¶

Section ID: P6-19.1 Version: v2026.07.31

For a small generative-AI feature, group question, evidence, draft_answer, tool_need, evaluation_note, and run_record as one request unit. This distinction connects prompt, retrieval, tool use, and evaluation into one feature flow instead of leaving them as separately explained concepts.

Even if you can explain LLMs, RAG, tool use, agents, evaluation, and failure handling separately, the actual feature design is not finished yet. The question now gathers around how these concepts move together inside one real request.

A small generative AI feature is safer to understand as a flow: interpret request -> retrieve needed evidence or choose a tool -> generate model response -> judge state -> record. Here, judge state also includes which state values are left inside the actual request for decisions such as automatic gate, human review, retry, fallback, stop, and approval.

Reconnecting Everything Through One Request¶

The core questions are:

• How can the concepts from Part 6 be reconnected as one request flow?
• When is a prompt alone enough, and when should retrieval or a tool be attached?
• What is the minimum record a small feature should keep?

We have already studied retrieval and evidence connection, tool selection and execution connection, execution records and reproducibility, operating constraints, and failure handling separately. Here, those pieces are reconnected as the structure by which one request actually settles.

The important shift is from choosing a failure route to tying together the structure of one request, including that judgment. You need a criterion for grouping question, evidence, execution, evaluation, and record at request level. Only then can the request result remain as a state value such as answer draft possible, evidence reinforcement needed, state lookup needed, or human review needed.

The judgments made in evaluation and operation come down into the request structure as follows.

It is safer to watch when the same question becomes answer draft, human review, state lookup needed, or insufficient evidence inside the request. The core of request-flow integration is not attaching many component names. It is making visible when evaluation and operation judgments become actual request state values.

For example, even in the same HR assistant, requests split as follows.

So tying together a request flow does not simply mean drawing question -> answer. It means keeping how far this request has been settled so far inside the same structure. With this criterion, the request execution record becomes not just a log, but an operating note that distinguishes answerable, evidence reinforcement needed, state lookup needed, and human review needed.

Distinguishing Prompt, Retrieval, and Tool-Use Request Flows¶

• You can explain a small generative AI feature as a request flow.
• You can distinguish work that can be handled by prompt alone from work that needs retrieval or tools.
• You can connect input, evidence, output, evaluation, and record in one design sentence.
• You can read the request execution records needed in a minimal implementation more easily.

The first split can be organized as follows.

With this table in mind, the rest of the section becomes easier to read not as a list of steps, but as a criterion for deciding which request state the same question enters first.

Which Feature Should We Use as the Example?¶

Take an internal-document-based vacation policy assistant. When a user asks, Can an employee who joined this month use summer vacation right away?, it may look like a simple Q&A task. In reality, the assistant must retrieve the current policy document, and the request may later expand into a system lookup such as How many vacation days do I have left? The assistant must also record which document was used as evidence, or that no document was found, so the feature can be fixed later. That makes this example useful for tying prompting, retrieval, tool use, evaluation, and records together inside one request.

This case was chosen because questions settled by prompt alone, questions requiring retrieval, and questions requiring current-state lookup can be compared side by side in one flow. It also naturally reveals operational judgments such as evidence-document selection, failure records, and human-review routing. The point is not to explain the HR domain in detail, but to show what structure a small generative AI feature needs.

Drawing It as One Request Flow¶

The simplest flow for the question above is:

1. Read what kind of question it is.
2. Judge whether it needs current policy.
3. Retrieve related documents if needed.
4. Create an answer and attach the evidence.
5. If something is ambiguous or missing, route to human confirmation or a follow-up question.

Even these five steps already form a structure different from a simple prompt example.

But to read the request flow as an operable structure, one more step is needed.

1. Record whether the answer should be accepted immediately or routed to evidence reinforcement or human review.

In other words, saying that one request has been settled does not only mean that an answer sentence was created. It also means the state in which the answer remains has been decided.

The flow can be simplified once more as follows.

flowchart LR
  A["user question"]
  B["classify request"]
  C["prompt only / retrieve / tool"]
  D["answer with evidence or state"]
  E["record and evaluate"]

  A --> B
  B --> C
  C --> D
  D --> E

The key point in this figure is that even a small feature should be read as a flow of question classification, evidence or state acquisition, answer, and record.

The main line of the back half of Part 6 settles here by tying good-answer judgment and choosing an operational path on failure into one request flow that connects question, evidence/state, answer, evaluation, and record.

When Prompt Alone Is Enough¶

A prompt alone is usually enough in cases such as:

• Polishing a sentence
• Changing summary format
• Answering within already provided material
• Writing a creative draft

In these cases, the model can perform the task using only information inside the current input.

For example:

• Making an email sentence more polite
• Summarizing the already pasted meeting notes in three sentences

These tasks can start without retrieval or tool calls.

When Retrieval Is Needed¶

Retrieval becomes necessary when conditions such as these appear:

• Current rules matter.
• Evidence documents must be shown with the answer.
• Long internal documents cannot all be placed directly into the prompt.
• Current repository documents are more reliable than the model's internal memory.

The vacation policy assistant belongs here. The actual current company policy matters more than a general answer that sounds correct.

In these cases, the problem should be read not as writing in a better tone, but as finding the current document accurately and answering with evidence.

The model's ability to write a good answer and the system's ability to bring the right evidence are not the same problem.

When Tool Use Is Needed¶

Retrieval alone is not always enough.

For example, if the user asks for:

• remaining vacation days,
• approval status, or
• creating an application form,

document retrieval is no longer sufficient.

In these cases, the system needs a tool that reads a value from the real system or performs an action.

Retrieval is more similar to checking what the rule is, while tool use is more similar to handling what should be executed or looked up in the current state.

Even Small Features Need Minimal Evaluation¶

Even for a small feature, looking only at one answer makes improvement difficult.

At minimum, it is useful to keep these four records.

These four items are the minimum device that brings the evaluation and failure-handling explanations from the back half of Part 6 into actual design.

The key is not to draw a generative AI feature as one model call. The request must be read, needed evidence or state must be acquired, and the answer and record must be seen as one structure.

Cases and Examples¶

The distinction among prompt-centered, retrieval combined, and tool use combined can be reconnected to feature scenes as follows.

The focus of these cases is not using generative AI, but which structure must be attached for this question to settle.

Case 1. Polishing a Sentence¶

Imagine a feature that makes an entered notice sentence more polite. It is easy to think that a generative AI feature should always include retrieval or tools, but in this case the first thing to check is the current sentence itself, and external documents or real-time system values may not be needed. For example, making Submit the documents again sound softer is not a problem of finding the latest policy. It is a problem of how to express a sentence that is already given.

If retrieval is attached here, unrelated policy phrases may be mixed in, producing a longer and stiffer answer than the original. The core structure is therefore more similar to a prompt with good instructions and examples. If the target to be changed is already inside the input, a prompt-centered structure may be enough. The shift here is from asking does generative AI require retrieval too? to asking does the work settle with the current input alone? Therefore, the result to confirm in this case is whether the desired expression change settles sufficiently from the input sentence itself without retrieval.

In this scene, it is important to first ask whether the needed information is already present. Adding retrieval to a request that only needs expression change can make the answer scattered while trying to find evidence that is not needed. So when designing a small generative AI feature, it is more important to first remove unnecessary components than to attach more components.

Case 2. Internal Policy Guidance¶

Consider an internal policy-guidance chatbot. When people see questions such as How many days in advance should I request vacation? or What is the order for applying for parental leave?, they may feel that the model can simply write the answer. But for these questions, accurately bringing the latest policy document comes before tone. For example, last quarter's policy may have said 3 days in advance, while the latest policy changed to 5 business days in advance. Even with a well-written prompt, the model's internal memory cannot guarantee the current standard.

Because policies can change, finding the latest document and attaching evidence sentences is more important than a natural-sounding answer. The core structure in this case is more similar to retrieving the latest passage and organizing the answer based on that evidence. The shift here is from asking can it write the answer well right away? to asking does it actually bring the latest policy evidence? Therefore, the result to confirm in this case is whether the answer becomes more stable in evidence accuracy, rather than tone, when the latest passage is attached.

In this case, you need to quickly read the signal that input alone is not enough. For a policy question, is this correct by current standards? matters more than whether the sentence sounds natural. Even if you improve only the model's ability to write well without attaching current documents, the core failure remains. Retrieval is therefore not optional decoration. It is a required structure for wrapping up the question.

Case 3. Remaining Vacation Lookup¶

Remaining vacation lookup is one step further. Policy documents can explain how annual leave is calculated, but they cannot answer how many days are actually left in my account. It is easy to feel that once the policy is found, the answer is complete. But to settle this request, you must immediately distinguish that not only the rule, but also the HR system value, is needed.

For example, even if the annual leave formula is known, the current balance that reflects already used days and pending vacation approvals can only be known by querying the system. This feature is not settled by retrieval alone. Tool use that reads the real state must be attached. The shift here is from asking can the rule be explained? to asking can the current state value be actually looked up and used to settle the answer? Therefore, the result to confirm in this case is whether a question that cannot settle with policy explanation alone settles as a current-state answer only after a real system lookup is attached.

The three cases can be reduced to design judgment as follows.

The same idea can be drawn again as a design-choice flow.

flowchart TD
  A["question arrives"]
  B{"is current input enough?"}
  C{"is latest document grounding needed?"}
  D{"is live system state needed?"}
  H{"is certainty risky or evidence weak?"}
  E["prompt-centered flow"]
  F["prompt + retrieval flow"]
  G["prompt + tool flow"]
  I["human review or follow-up question"]
  J["answer and run record"]

  A --> B
  B -->|yes| E
  B -->|no| C
  C -->|yes| F
  C -->|no| D
  D -->|yes| G
  D -->|no| E
  E --> H
  F --> H
  G --> H
  H -->|yes| I
  H -->|no| J
  I --> J

The key point in this diagram is that the feature structure is chosen not by model type, but by the evidence and state needed to settle the question. Also, whatever structure is chosen, the final step must recheck the risk of overconfident answers or insufficient evidence so the request can be routed to human review or a follow-up question.

Scenes Where Request State Should Be Recorded First¶

A common misunderstanding when first reading small generative AI feature design is to think, Since this is an AI feature, I should attach lots of retrieval and tools first. In reality, it is more important to distinguish what is first missing to settle the current question.

Turned into practical questions, this criterion reads as follows.

If the same request is brought down to which state should remain?, it can be read more briefly as follows.

The key in this table is to go one level below which structure should be attached? and record immediately how far this request has been settled so far. That way, even after retrieval or tool use is attached, the final state can still be separated into answerable, evidence reinforcement needed, state lookup needed, and human review needed.

The first criterion to learn is simple. Designing a small generative AI feature is more similar to distinguishing what is first missing among current input, current evidence, current state, and whether a definite answer is possible, then attaching the right structure and state value, than to choosing a model-call method.

Exercise and Example¶

The focus of this exercise is not attach a generative AI feature, but judging directly which structure is needed to settle the question. Even after reading the cases above, prompt, retrieval, and tool use can look mixed again when you see an actual request sentence. So read the question, write down which structure is needed, what record must remain, and where failure appears if the wrong choice is made, then compare with the explanation below.

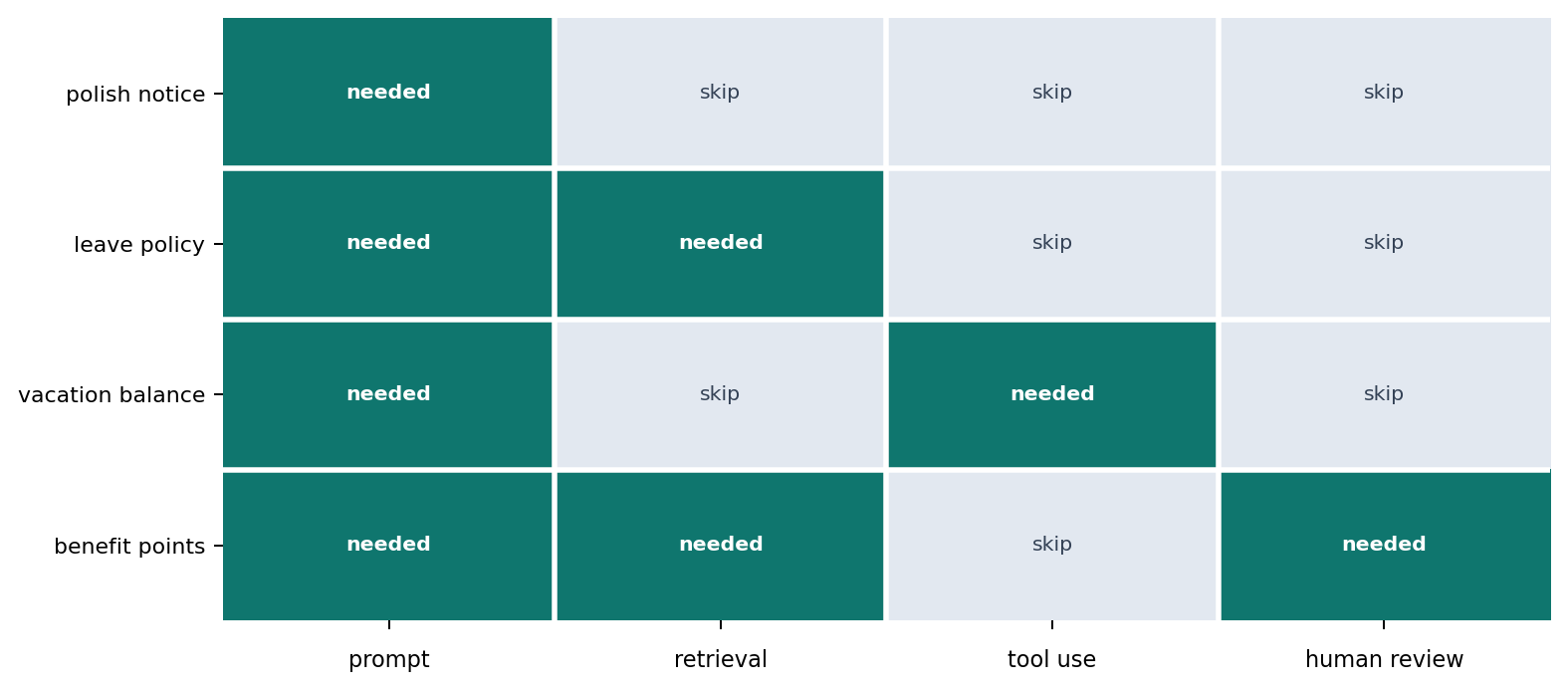

The exercise below uses four request sentences. Even though they look like the same HR assistant, some requests settle with prompt-centered, some first need prompt + retrieval, and some first need prompt + tool use.

The key is to first distinguish whether the question needs current input, current evidence, or current state to settle. If the structure is chosen incorrectly, missing evidence, missing state, or unnecessary retrieval appears before answer quality becomes the main problem.

First, cover the structure to attach first column in the table below and write what each request needs first. Then compare the answer, reason, and record item.

When reading this table, what matters more than the correct feature name is what is missing first if the answer is to settle. For example, if retrieval alone is attached to a remaining-vacation lookup, the rule sentence may be retrieved, but the current balance remains unanswered. If retrieval is attached to sentence polishing, the answer can become scattered instead.

The same idea can be shortened into a practical review note.

Reconnecting as a Design Sentence¶

Instead of writing a long design document, it is enough if you can summarize one feature in a sentence like this:

The vacation policy assistant reads the user's question, retrieves relevant policy documents, creates an answer with evidence sentences, and records retrieval failure or missing evidence.

If the feature requires current-state lookup, the sentence must change too. For example: The remaining-vacation guidance feature reads the user's question, checks vacation rules if needed, retrieves the current remaining days through an HR-system lookup tool, and records the lookup result together with the answer. This sentence includes tool call and lookup-result recording.

Such a design sentence already contains:

• input,
• retrieval or tool call,
• output,
• evidence or lookup result, and
• failure record.

In other words, the whole of Part 6 has been compressed into one small service sentence.

If we separate once more at this point, what the request-flow design directly decides and what the minimal implementation checks become clearer.

The key in this table is that you should first decide which request structure should be attached, rather than what was implemented. The minimal implementation then checks which output and request execution record that structure actually leaves behind.

Condensed into one line, designing a small generative AI feature is not calling a model once. It is choosing the structure that fits the question type, answering with evidence and state, and recording that path.

Checklist¶

• Can you explain a small generative AI feature not as one model call, but as a request flow of question, evidence/state acquisition, output, evaluation, and record?
• Can you distinguish work where a prompt alone is enough from work that needs retrieval or tools?
• Can you explain that retrieval is about evidence acquisition, while tool use is about state lookup and execution?

Sources and References¶

• OpenAI, Prompt engineering, OpenAI API Docs, accessed 2026-07-19.
• OpenAI, Retrieval, OpenAI API Docs, accessed 2026-07-19.
• OpenAI, Function calling, OpenAI API Docs, accessed 2026-07-19.
