P6-4.4 补充学习：KV cache 与重复生成¶

# 比较没有 KV cache 时每次重新 projection，与使用 cache 复用先前 K/V 时的 projection 负担。
import numpy as np

token_to_id = {
    "user": 0,
    "login": 1,
    "error": 2,
    "reproduce": 3,
    "done": 4,
}

embedding_table = np.array(
    [
        [1.0, 0.2, 0.0],
        [0.5, 1.0, 0.1],
        [1.2, 0.8, 0.4],
        [0.3, 1.1, 0.9],
        [0.7, 0.4, 1.3],
    ]
)

W_k = np.array(
    [
        [0.8, 0.1],
        [0.2, 0.7],
        [0.5, 0.6],
    ]
)

W_v = np.array(
    [
        [0.3, 0.9],
        [0.6, 0.2],
        [0.4, 0.8],
    ]
)

W_q = np.array(
    [
        [0.7, 0.2],
        [0.1, 0.8],
        [0.6, 0.5],
    ]
)

prefix_token_ids = [token_to_id["user"], token_to_id["login"], token_to_id["error"]]
generated_token_ids = [token_to_id["reproduce"], token_to_id["done"]]

def project_to_kv(token_ids):
    embeddings = embedding_table[token_ids]
    keys = embeddings @ W_k
    values = embeddings @ W_v
    return keys, values

def project_query(token_id):
    embedding = embedding_table[[token_id]]
    return embedding @ W_q

def attention_for_last_token(query, keys, values):
    scores = (query @ keys.T) / np.sqrt(keys.shape[1])
    shifted = scores - np.max(scores)
    weights = np.exp(shifted) / np.sum(np.exp(shifted))
    context = weights @ values
    return weights, context

def decode_without_cache(prefix_ids, new_ids):
    seen_ids = prefix_ids[:]
    projected_token_count = 0
    step_logs = []

    for new_id in new_ids:
        seen_ids.append(new_id)
        keys, values = project_to_kv(seen_ids)
        query = project_query(new_id)
        weights, context = attention_for_last_token(query, keys, values)
        projected_token_count += len(seen_ids)
        step_logs.append((new_id, len(seen_ids), keys, values, weights, context))

    return step_logs, projected_token_count

def decode_with_cache(prefix_ids, new_ids):
    cached_keys, cached_values = project_to_kv(prefix_ids)
    projected_token_count = len(prefix_ids)
    step_logs = [
        (
            "prefix_loaded",
            len(prefix_ids),
            cached_keys.copy(),
            cached_values.copy(),
            None,
            None,
        )
    ]

    for new_id in new_ids:
        new_keys, new_values = project_to_kv([new_id])
        cached_keys = np.vstack([cached_keys, new_keys])
        cached_values = np.vstack([cached_values, new_values])
        query = project_query(new_id)
        weights, context = attention_for_last_token(query, cached_keys, cached_values)
        projected_token_count += 1
        step_logs.append((new_id, 1, cached_keys.copy(), cached_values.copy(), weights, context))

    return step_logs, projected_token_count

def projection_counts(prefix_length, generated_length):
    no_cache_count = sum(prefix_length + step for step in range(1, generated_length + 1))
    with_cache_count = prefix_length + generated_length
    saved_ratio = 1 - (with_cache_count / no_cache_count)
    return no_cache_count, with_cache_count, saved_ratio

no_cache_logs, no_cache_count = decode_without_cache(prefix_token_ids, generated_token_ids)
with_cache_logs, with_cache_count = decode_with_cache(prefix_token_ids, generated_token_ids)
saved_ratio = round(1 - (with_cache_count / no_cache_count), 3)

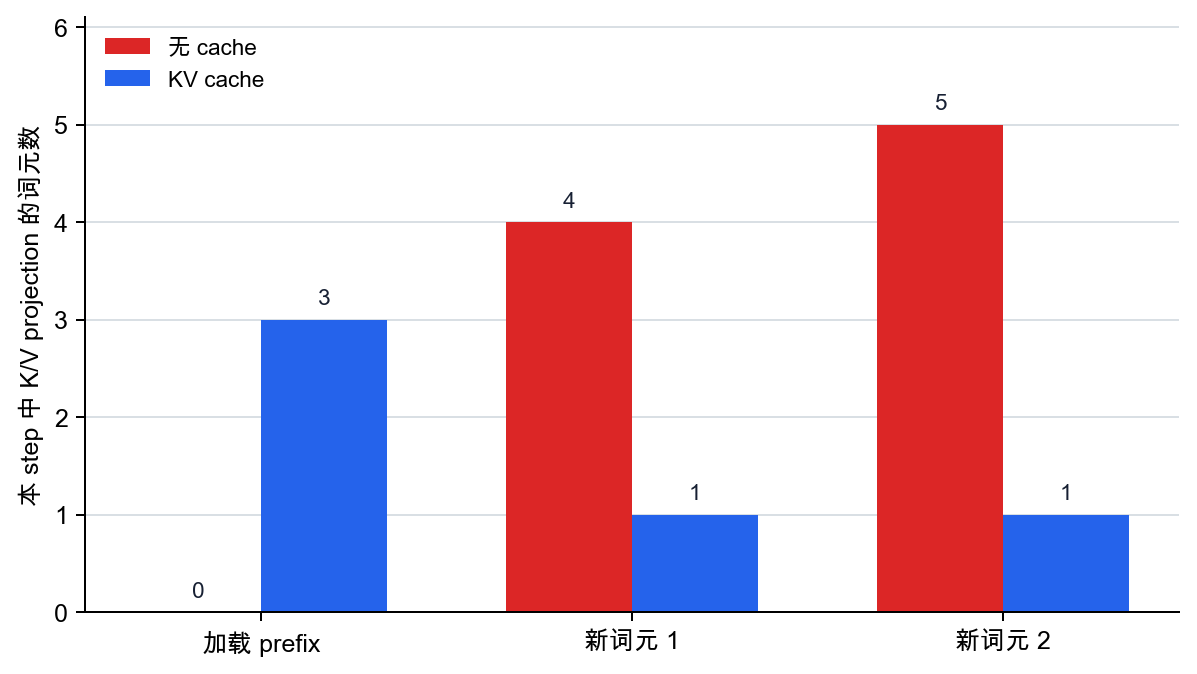

print("[without cache]")
for token_id, projected_now, keys, values, weights, context in no_cache_logs:
    print("new_token_id =", token_id)
    print("projected_now =", projected_now)
    print("keys_shape =", keys.shape, "values_shape =", values.shape)
    print("attention_weights =", np.round(weights, 3))
    print("context =", np.round(context, 3))
    print("last_key_row =", np.round(keys[-1], 2))
    print("last_value_row =", np.round(values[-1], 2))

print("[with cache]")
for token_id, projected_now, keys, values, weights, context in with_cache_logs:
    print("step =", token_id)
    print("projected_now =", projected_now)
    print("keys_shape =", keys.shape, "values_shape =", values.shape)
    if token_id != "prefix_loaded":
        print("attention_weights =", np.round(weights, 3))
        print("context =", np.round(context, 3))
        print("last_key_row =", np.round(keys[-1], 2))
        print("last_value_row =", np.round(values[-1], 2))

print("step_output_match_1 =", np.allclose(no_cache_logs[0][5], with_cache_logs[1][5]))
print("step_output_match_2 =", np.allclose(no_cache_logs[1][5], with_cache_logs[2][5]))

print("no_cache_projected_token_count =", no_cache_count)
print("with_cache_projected_token_count =", with_cache_count)
print("saved_ratio =", saved_ratio)

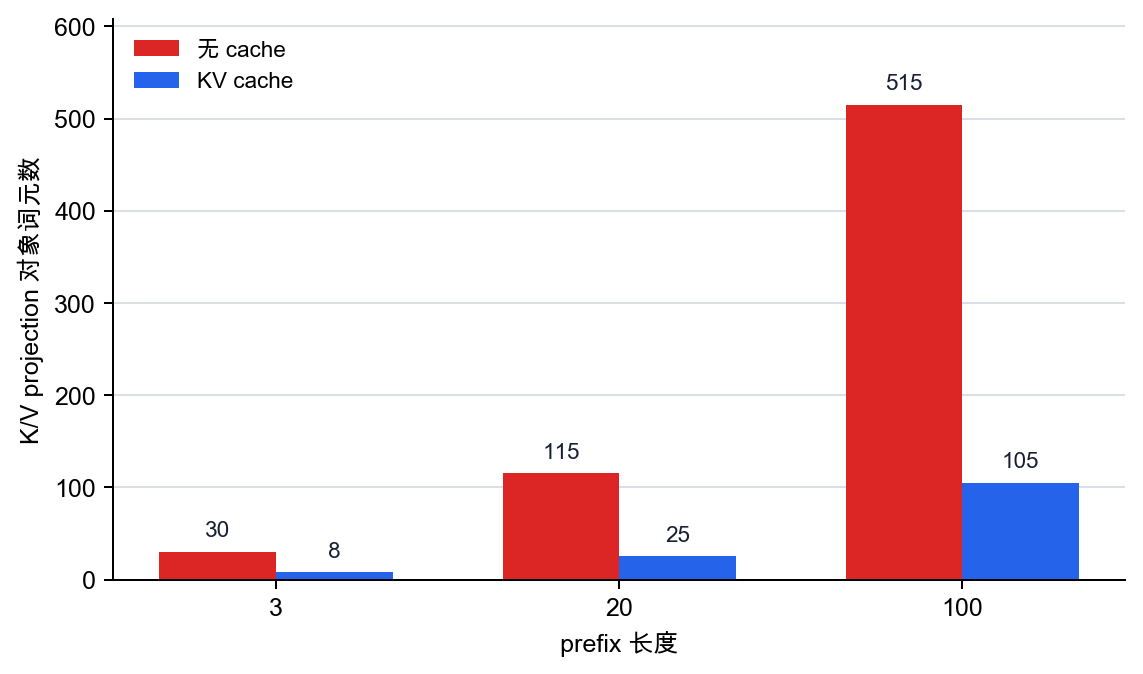

print("[projection count by prefix length]")
for prefix_length in [3, 20, 100]:
    no_cache_total, with_cache_total, ratio = projection_counts(
        prefix_length=prefix_length,
        generated_length=5,
    )
    print(
        f"prefix_length={prefix_length}, generated_length=5, "
        f"without_cache={no_cache_total}, with_cache={with_cache_total}, "
        f"saved_ratio={ratio:.3f}"
    )
